Precision 3D Cutting Solution for Complex Geometries & Industrial Applications
Transform Your Production with True 5-Axis Capability

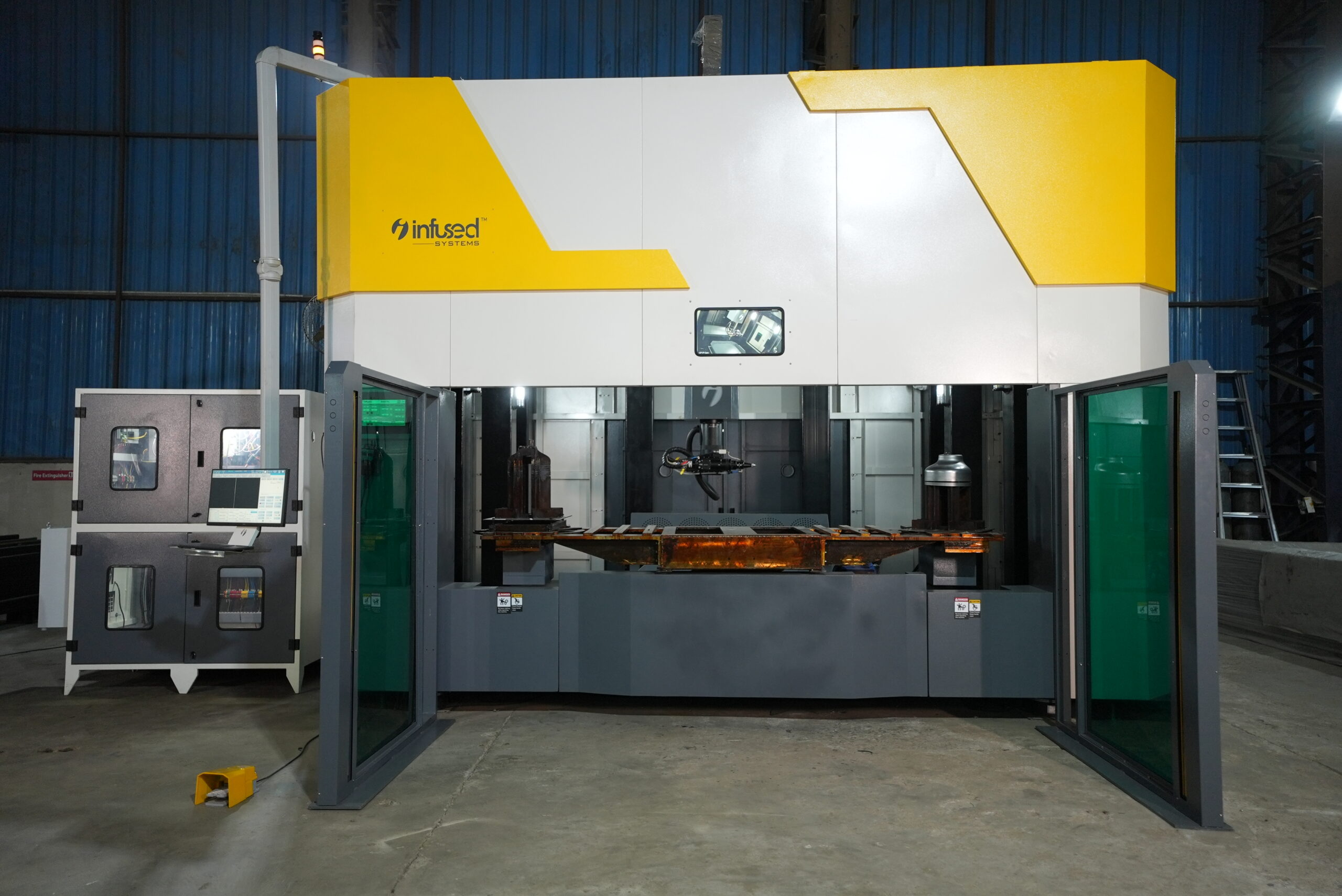

The SIGMA SA 8080 by Infused Systems is a high-performance 5-Axis Laser Cutting System designed for the most demanding industrial tasks. Whether you are processing 3D automotive parts, aerospace components, or complex thermoformed shapes, the SA 8080 delivers unmatched edge quality and speed.
Powered by a robust $3\text{ kW} / 6\text{ kW}$ laser source, this machine features a spacious working envelope and exceptional dynamics (up to $90\text{ m/min}$), ensuring high productivity for both 2D sheets and complex 3D structures.
Key Features:
3D Cutting Flexibility: $360^\circ$ continuous rotation and wide tilt angles allow cutting on curved surfaces.
Heavy-Duty Stability: A solid $7,500\text{ kg}$ structure eliminates vibration, ensuring accuracy.
High Precision: Achieve microscopic precision with a repeatability of $\pm 0.015\text{ mm}$.
Technical Specifications (Data Sheet)
Machine Parameters
| Specification | Details |
| Model | SIGMA SA 8080 |
| Laser Power Source | $3\text{ kW}$ / $6\text{ kW}$ (Fiber Laser) |
| Working Area | $800 \times 800\text{ mm}$ |
| Compatible Materials | Metal (SS, MS, Aluminum), 2D & 3D Parts |
| Gross Weight | $7,500\text{ kg}$ |
Performance & Accuracy
| Parameter | Value |
| Max. Rapid Speed | $90\text{ m/min}$ |
| Repeatability | $\pm 0.015\text{ mm}$ |
| Processing Type | 5-Axis Simultaneous Cutting |
Axis Stroke & Motor Power
| Axis | Travel Range (Stroke) | Motor Power |
| X-Axis | $0 – 1900\text{ mm}$ | $2\text{ kW}$ |
| Y-Axis | $0 – 1130\text{ mm}$ | $3\text{ kW}$ |
| Z-Axis | $0 – 750\text{ mm}$ | $2\text{ kW}$ |
| A-Axis (Rotation) | $0 \sim 360^\circ$ | High-Torque Servo |
| B-Axis (Tilt) | $-90^\circ \sim +90^\circ$ | High-Torque Servo |
Key Specifications
• Axis System: 5 Axis (X, Y, Z + A, B Rotation)
• Laser Type: Fiber Laser
• Cutting Head: Auto-Focus Industrial Cutting Head
• Applications: 3D profiles, tubes, metal sheets, fabrication jobs
• Accuracy: High repeatability & precision
• Build: Heavy-duty industrial structure
Applications (Industry Use Cases)
Automotive: Trimming of hot-formed parts and 3D chassis components.
Aerospace: Precision cutting of turbine blades and curved structural parts.
General Fabrication: Complex hole cutting on pipes, tubes, and molded surfaces.
Automotive parts
Aerospace components
Metal fabrication
Custom engineering
Industrial prototypes
3D contour & complex profile cutting
Benefits for Your Business
➤ Higher Production Output
Multi-angle cutting in one setup saves time and increases efficiency.
➤ Superior Accuracy
Consistent precision reduces material waste and rework.
➤ Multi-Purpose Use
Compatible with tubes, sheets, profiles, and 3D structures.
➤ Cost-Effective Operation
Less maintenance + long life = better long-term savings.
Why Infused Systems?
Infused Systems Pvt. Ltd. is a trusted manufacturer of advanced Laser Cutting & Automation solutions in India.
Our machines are built for performance, reliability, and long-term industrial use — ensuring the best return on investment.
